Cylinder

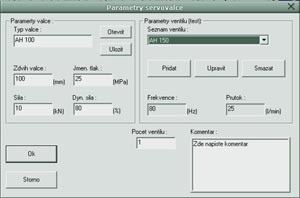

In the top bar you can select three different functions. You can also set the parameters of the cylinders and valves on the dialog.

In the left section, you set the cylinder type and parameters. These parameters can be read from the .cyl file. In the right part you can then select from the list of valves. You can add and edit valves freely. These settings are stored in the valves.dat file. In addition, comments can be added to the document. The document is created so that it can be printed directly.

At the bottom of the main window you can see the specific values of the waveforms. You can see a small cursor that moves around the function. The corresponding function values are then read from this point.
