Výpočet hřídele

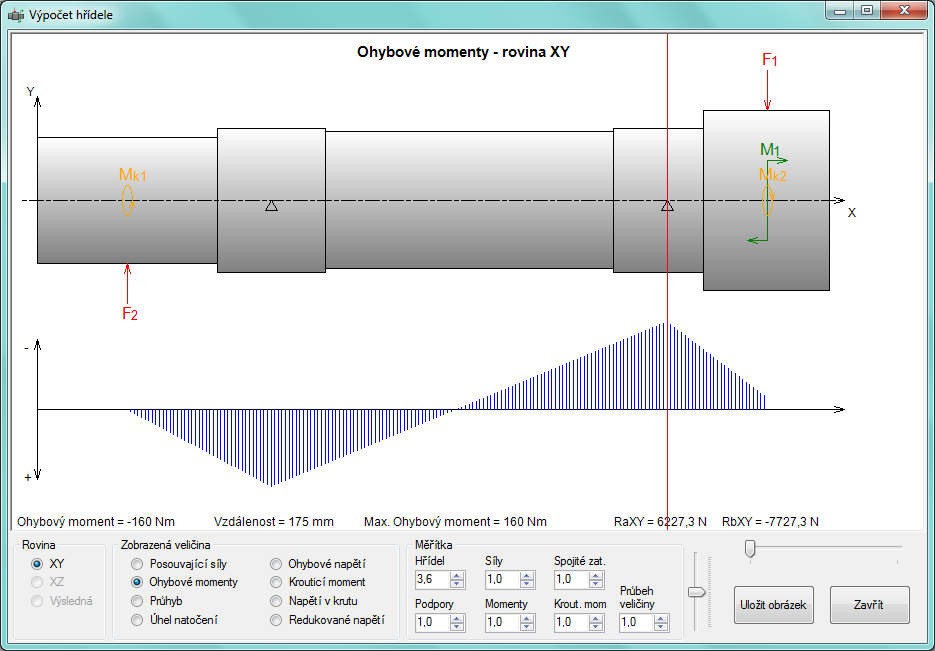

Shaft Calculation is a program used to determine the stress, deflection, bending moments and other quantities on a designed shaft on two supports.

Demo limitations:

.
• maximum diameter of shaft parts 40mm
• maximum load force +/- 500N
• maximum of two load forces on the shaft in each plane
• maximum magnitude of load bending moment +/- 15Nm
• maximum two load bending moments on the shaft in each plane
• maximum magnitude of the continuous load +/- 800N/m
• maximum of two loaded continuous loads on the shaft in each plane
• maximum load torque magnitude +/- 15Nm
• maximum two load torques on the shaft in each plane
