SimPhase

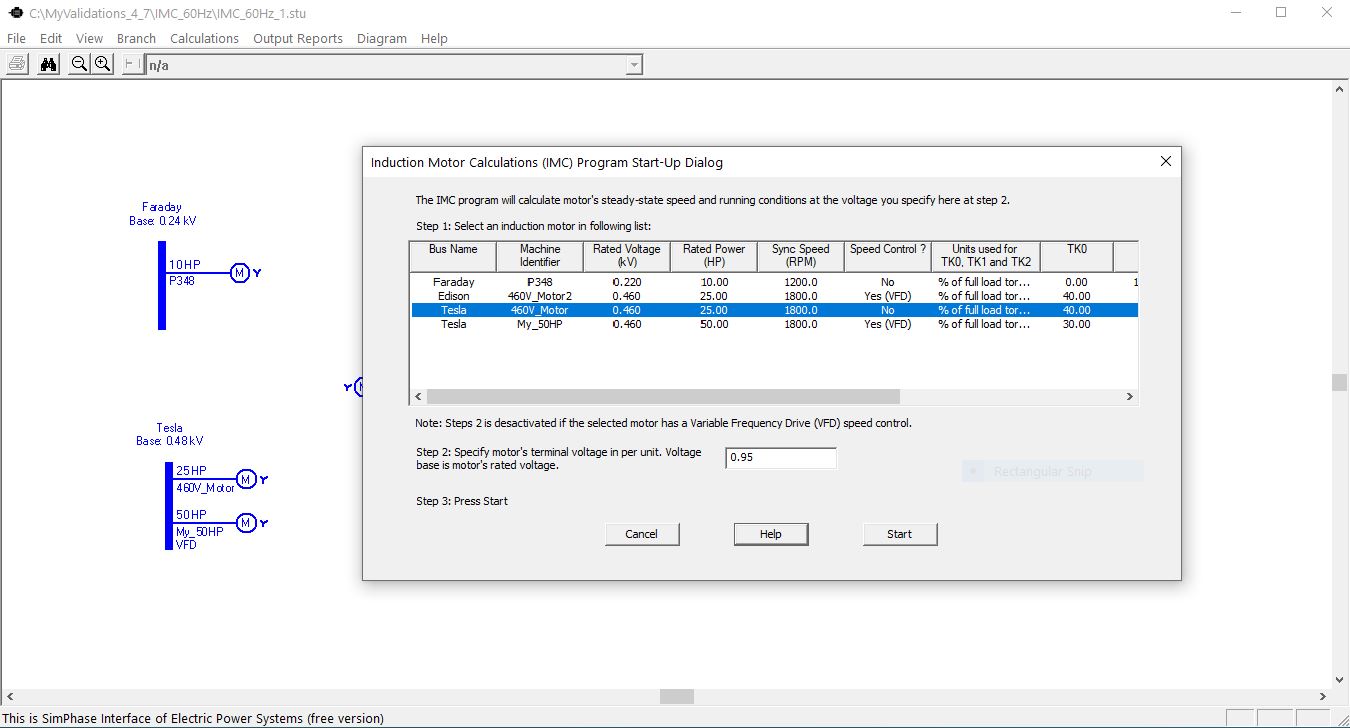

SimPhase is a program that can calculate with high accuracy the steady state conditions of a three-phase induction motor for any combination of mechanical load and terminal voltage. The software suite includes two programs, SimPhase Graphical Interface and SimPhase Induction Motor Calculations (ICM) Program. The program can work with 50 Hz and 60 Hz three-phase induction motors. The projects are saved with a .stu extension and require the creation of a three-phase bus. To generate it, right click to select diagram - create bus.
